This special-order item requires extra processing time; we’ll email you the ETA after your order, or you can use the contact form with your shipping address and item name to request it.

User 1

RockJock

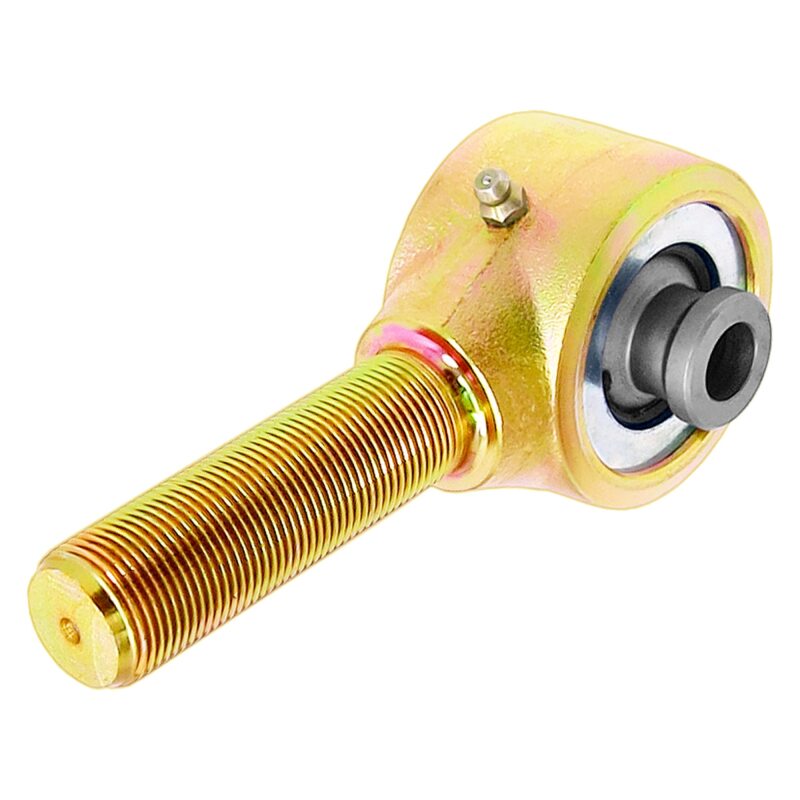

RockJock Johnny Joint 2-1/2in Narrow Rod End (1in RH Thread 2.375in x .718in Ball)

$66.95
$66.95
Sold Out

Details

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2.375 in. mounting width ball with a .718 in. thru bolt hole. Finished in gold zinc plating.
